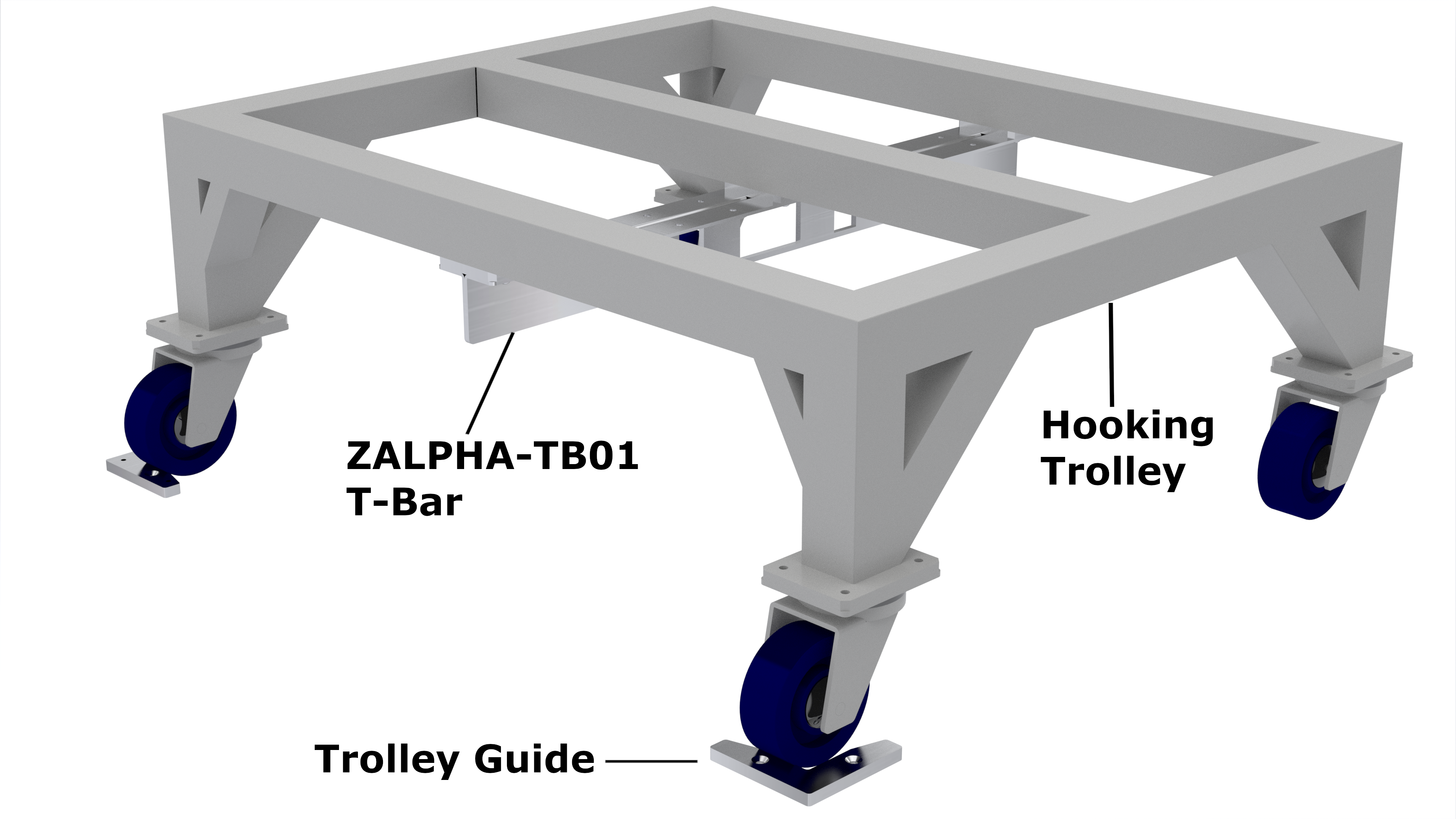

ZALPHA-PH-HK-01 is a payload handler used to link trolley with Zalpha series AMR using “Hooking type”. ZALPHA-PH-HK-01 is designed to provide easy and smooth hook between AMR and trolley thus increase stability and safety during load transportation.
| DIMENSION | |
|---|---|
| Length | 820 mm |
| Width | 550 mm |
| Height | Extended Model: 73 mm Lowbed Model: 55 mm |
| Maximum Payload | 300 kg |
| ENVIRONMENT | |
| Ambient Temperature | 5~40 °C |
| Humidity | 10~95 % |
| Operating Environment | Indoor usage only, with no excessive dust or corrosive gases |
| IP Class | IP20 |
ZALPHA-PH-HK Data Sheet
